COMMANDER MULTI PUMP CONTROL SYSTEM

Please call for pricing
Available
COMMANDER MULTI-PUMP CENTRAL CONTROL SYSTEM
IDMS MANUFACTURES INDUSTRIAL MULTI-PUMP CENTRAL OPERATOR CONTROL SYSTEMS TO MEET SPECIFIC HIGH PERFORMANCE DEMANDS.
Features include:
COMMANDER Fleet unit Interface

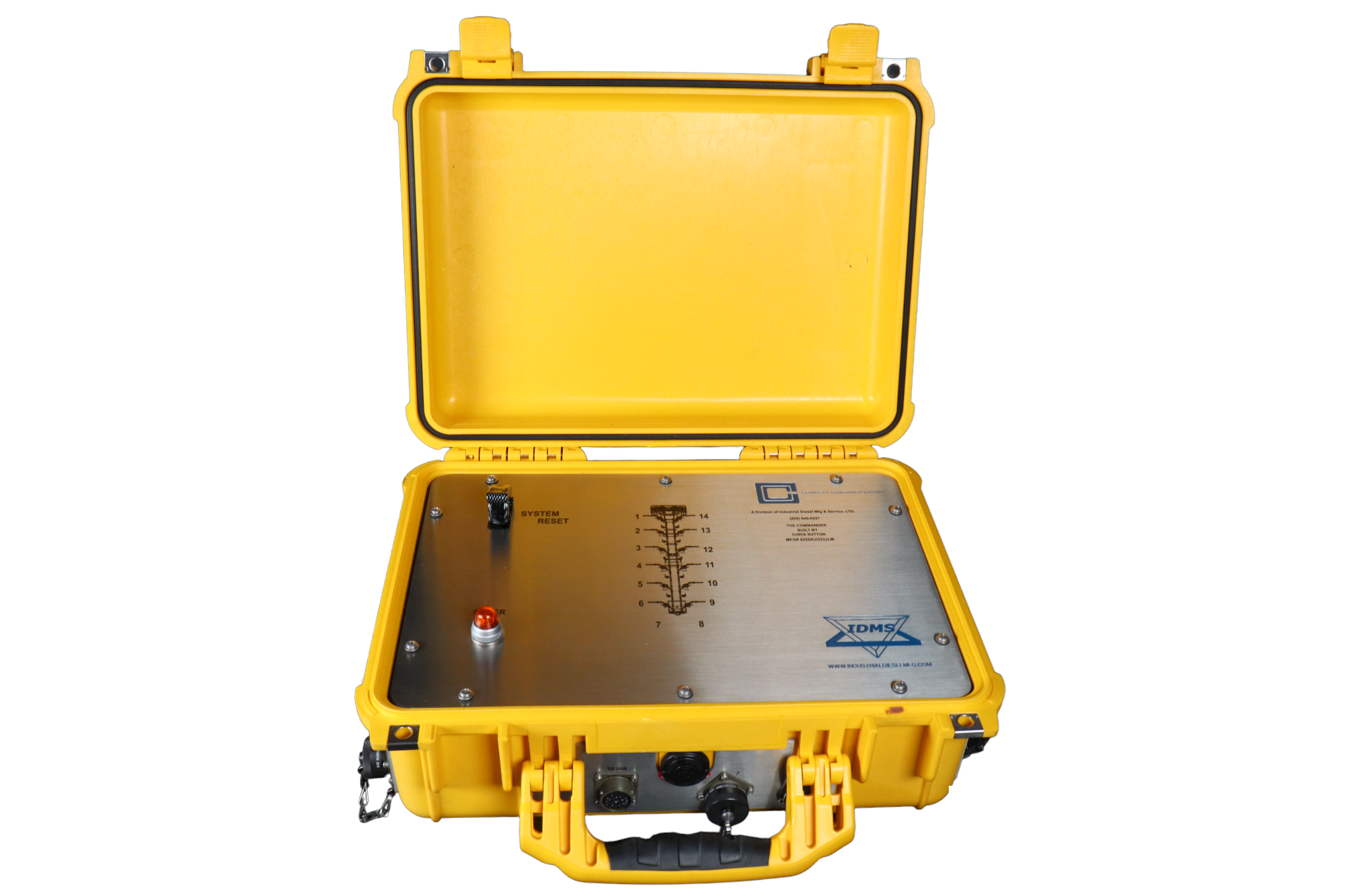

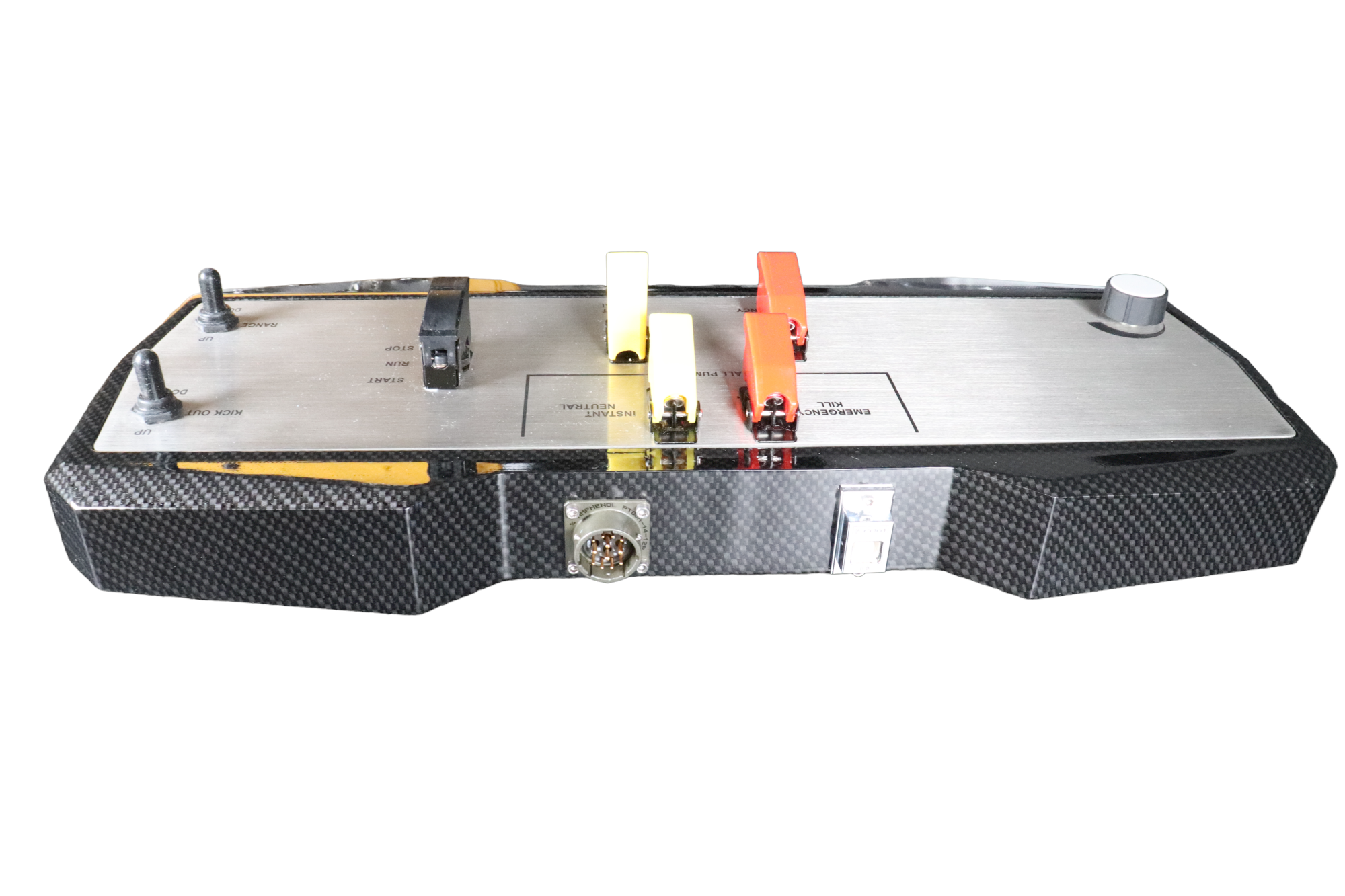

Interconnect suite case enclosure

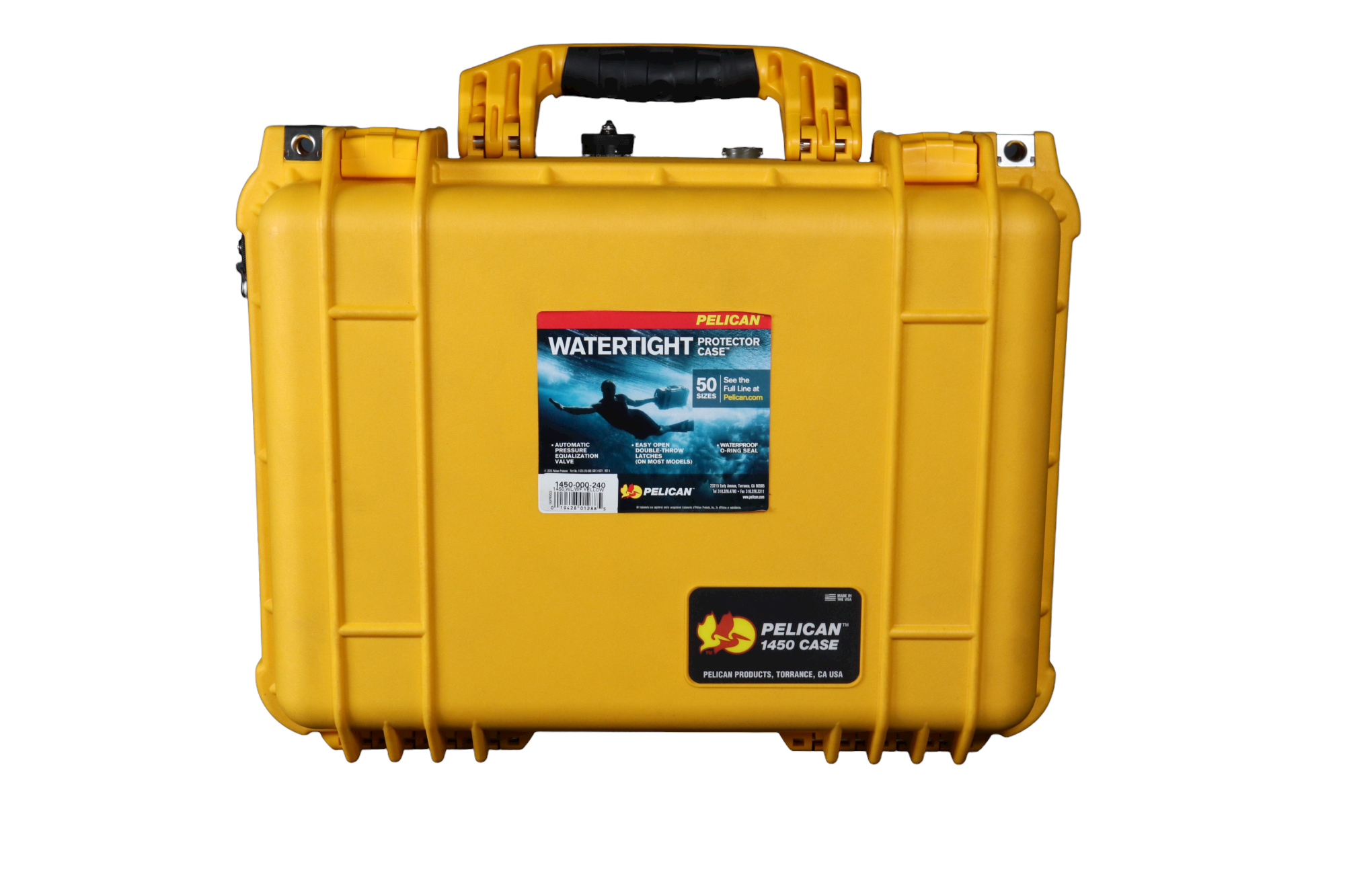

  • Weather-tight suitcase with sealed construction

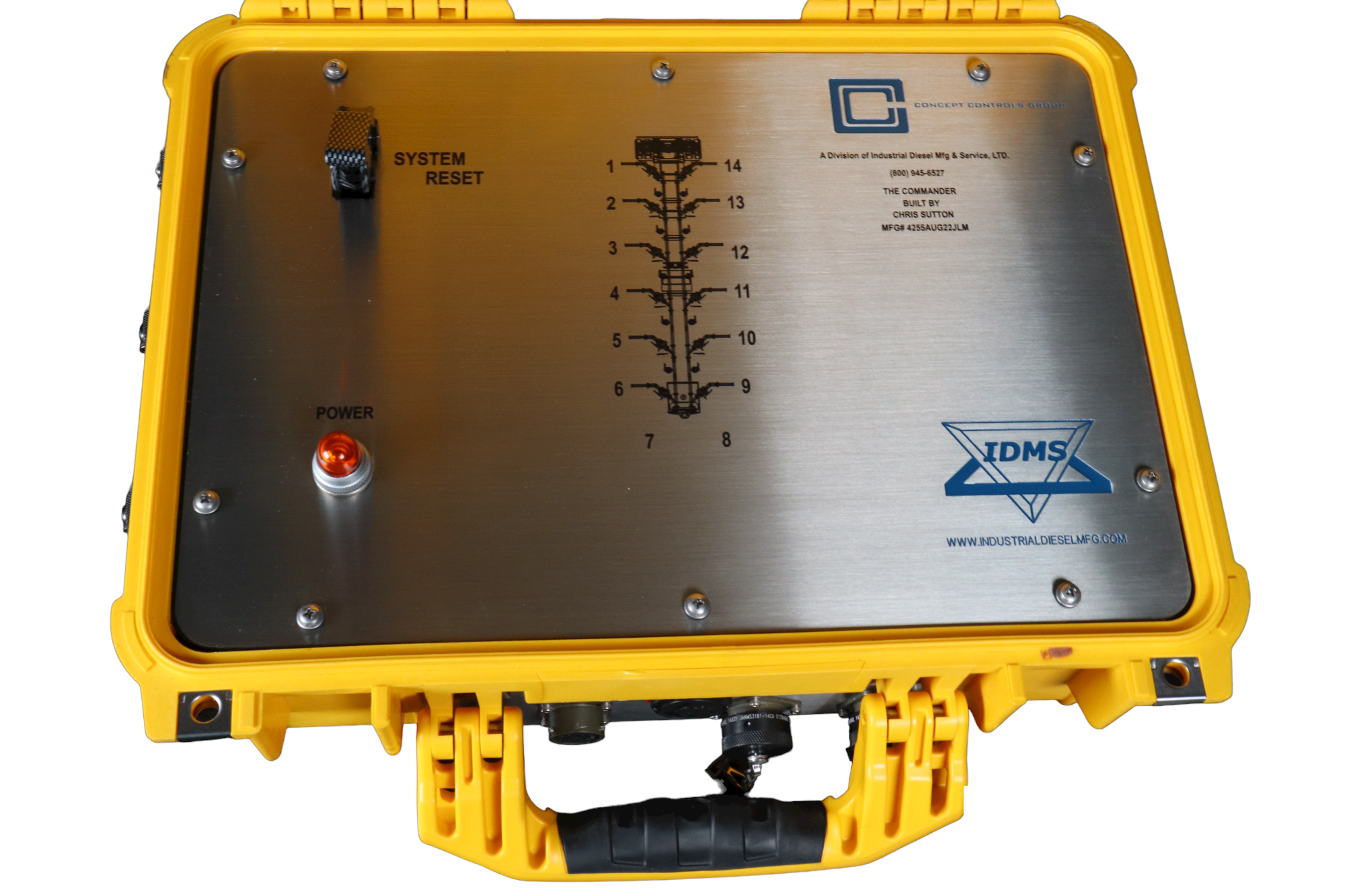

  • Integral stainless steel engraved panel

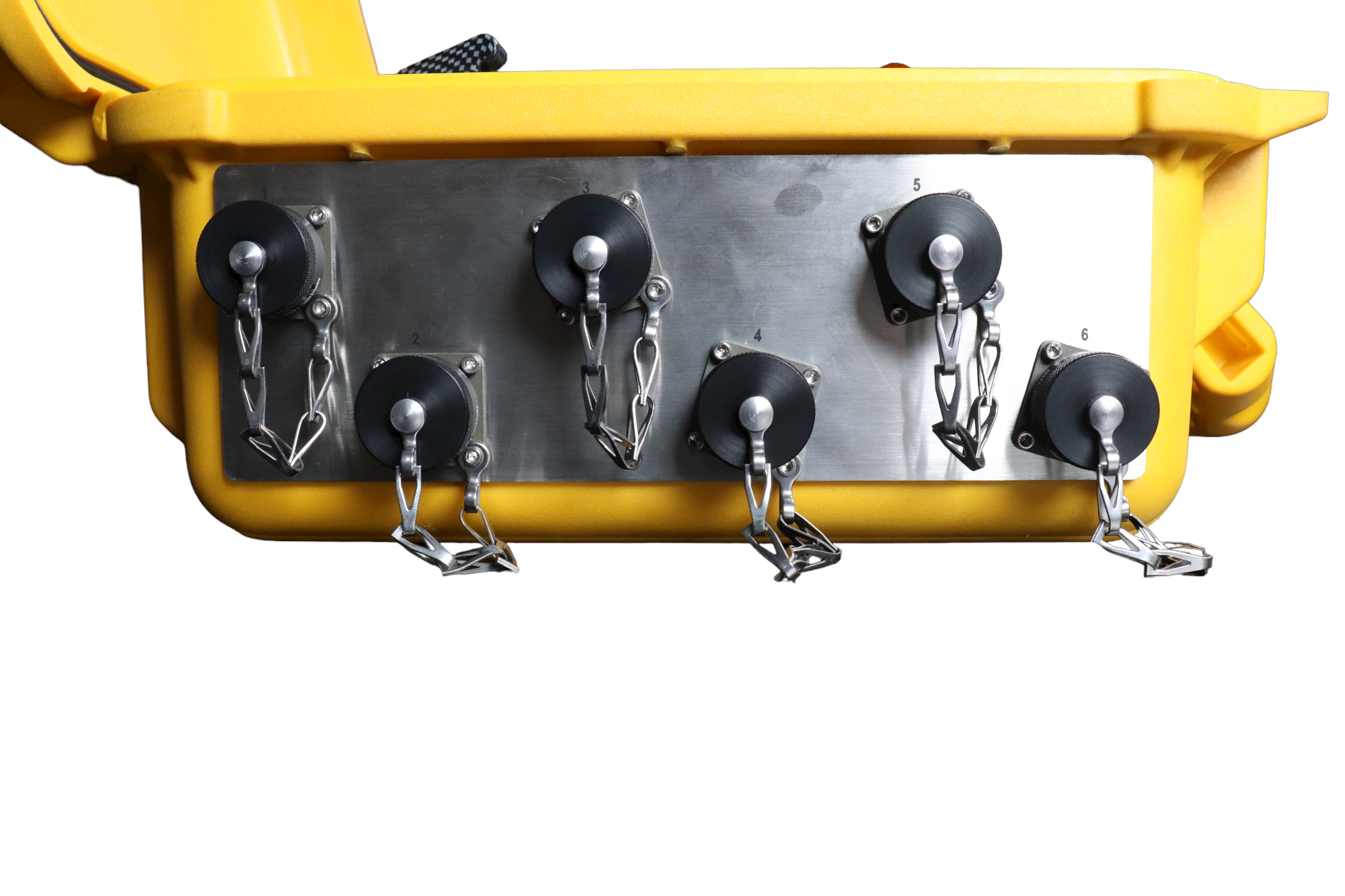

  • MIL spec twist lock bulk head & cable end connections
  • Permanently engraved instrument grouping & gauge labeling
  • Detachable remote data cable connection with molded plastic strain relief

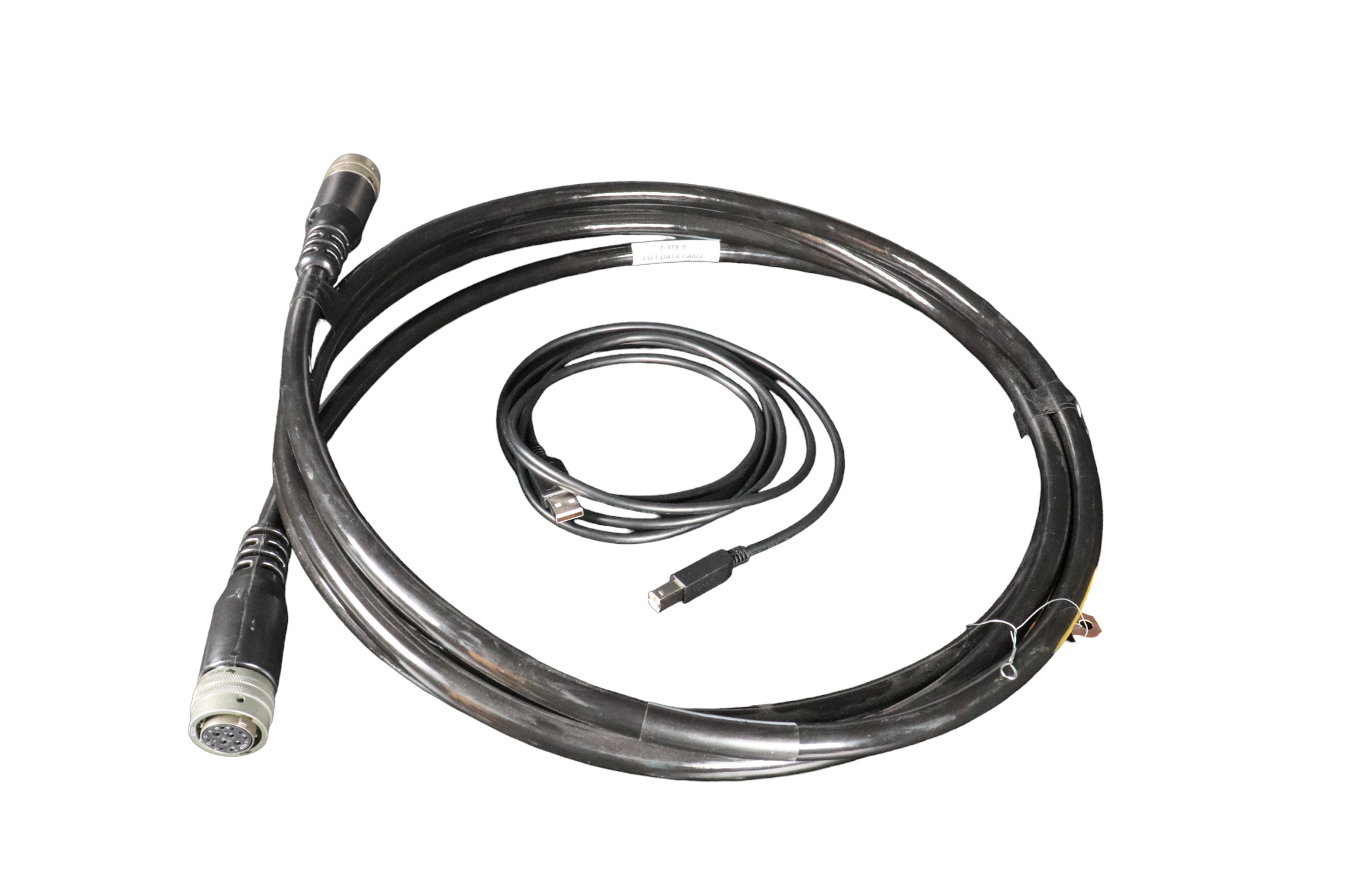

  • Detachable molded remote cable with strain relief x 200′
Control / Data Van installed Digital Operator Interface
Commander TRICON-III Digital CAN-Bus (J1939) Pump Control Operator Control Interface includes:

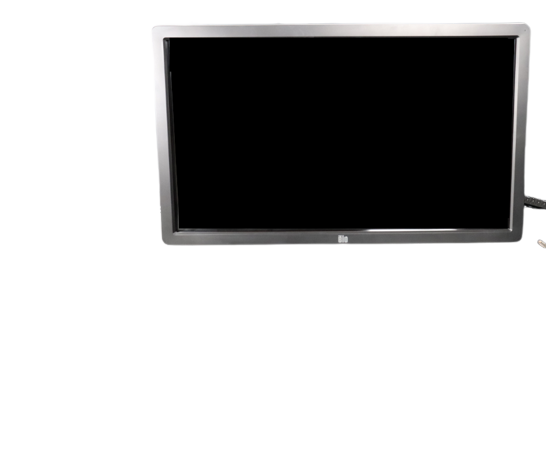

Central, Touch-screen Data Display (Master Control Unit)
Control features:
  • Digital engine / transmission/ Pump/ Fan drive run data module
  • Major component specific display screens
  • Diagnostics error message display & light indicators
  • Control power OFF/ON switch
  • Engine OFF/RUN/START switch
  • Engine throttle speed UP/DOWN rotary control knob
  • E-KILL button (emergency engine / transmission shutdown)
Transmission Group (internally mounted)
  • Digital range, error message data & diagnostics display module
Pump Data Screen
  • Digital data includes:
    • Over pressure trip set point
    • Lube oil temperature
    • Lube oil pressure
    • BBL/Min rate
    • Input speed rpm
  • Plunger Lube Auto/Manual switch
Environmentally sealed display & components include:
  • Digital operator’s color display screen data to include:
    • Engine speed (rpm)
    • Engine coolant temperature (w/ alarm field/text)
    • Engine oil pressure (w/ alarm field/text)
    • Engine hours
    • Battery Voltage
    • Fuel Temperature
    • Fan drive pump charge pressure
    • Fan drive system main pressure
    • Fan drive system oil temperature
    • Transmission range (w/ lock-up indicator field/text)
    • Transmission oil temperature (w/ alarm field/text)
    • Pump oil temperature (w/ alarm field/text)
    • Pump oil pressure (w/ alarm field/text)
    • Error message text display
    • Error message code display (J1939, SPN/FMI)
    • Pump over pressure trip set point
    • Pump rate (BBL/ min)
    • Control power OFF/ON switch
  • Engine KILL/RUN/START switch
  • Engine throttle speed UP/DOWN rotary control knob
  • E-KILL switch (emergency engine/transmission shutdown)
  • Transmission range selector
  • Transmission instant neutral/ idle button
  • Pump over pressure set trip point (Pump screen)

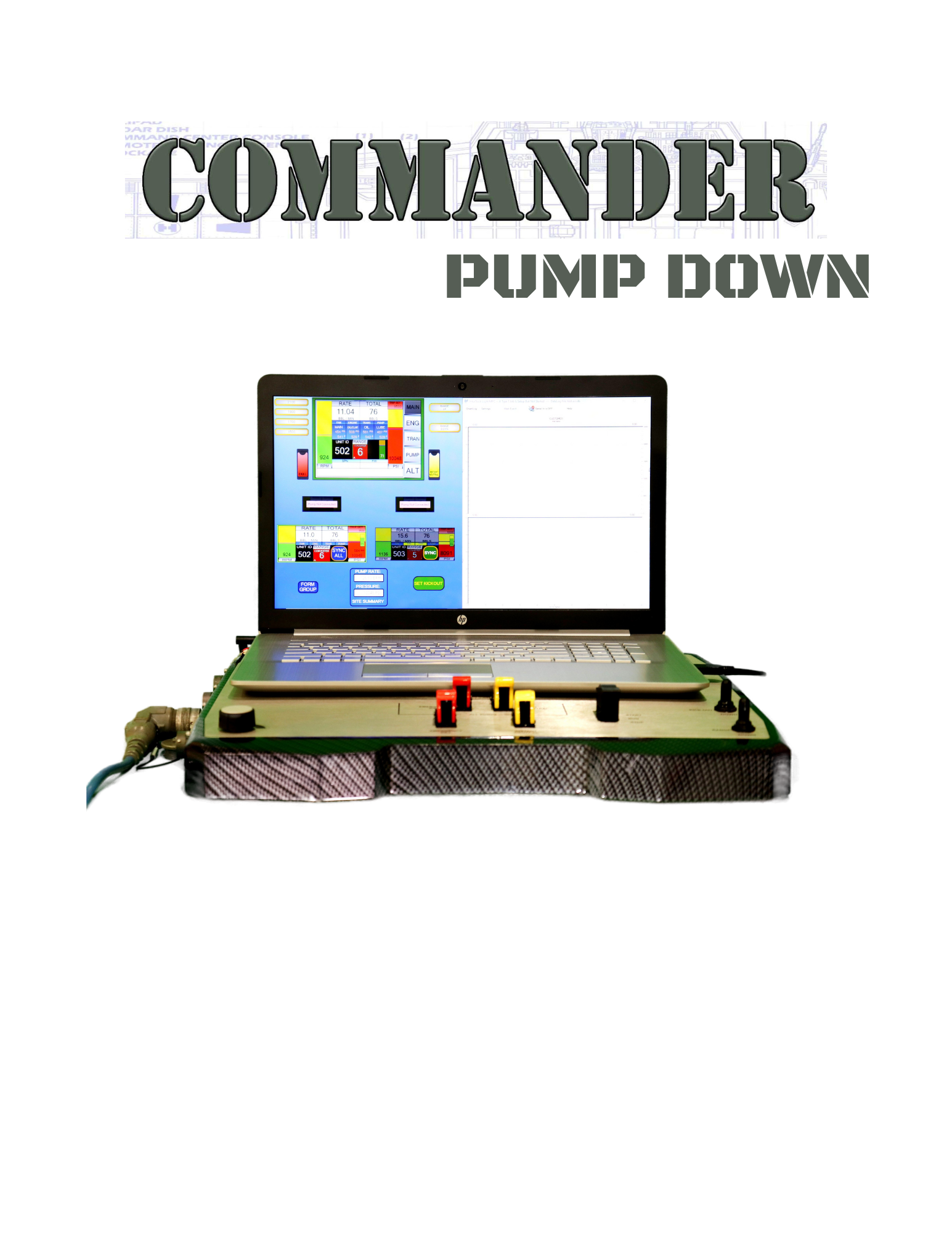

COMMANDER PUMP DOWN CONTROL SYSTEM

The PUMP-DOWN COMMANDER multi pump control works with
our Tricon line of controls to give one operator control of 1-4 pumps.
This system also includes data acquisition with line charts for the
customer report.
Pressure and Rate information come directly from the pump into our
integrated Intui Track Data Acquisition. No need for additional data
acquisition setup.

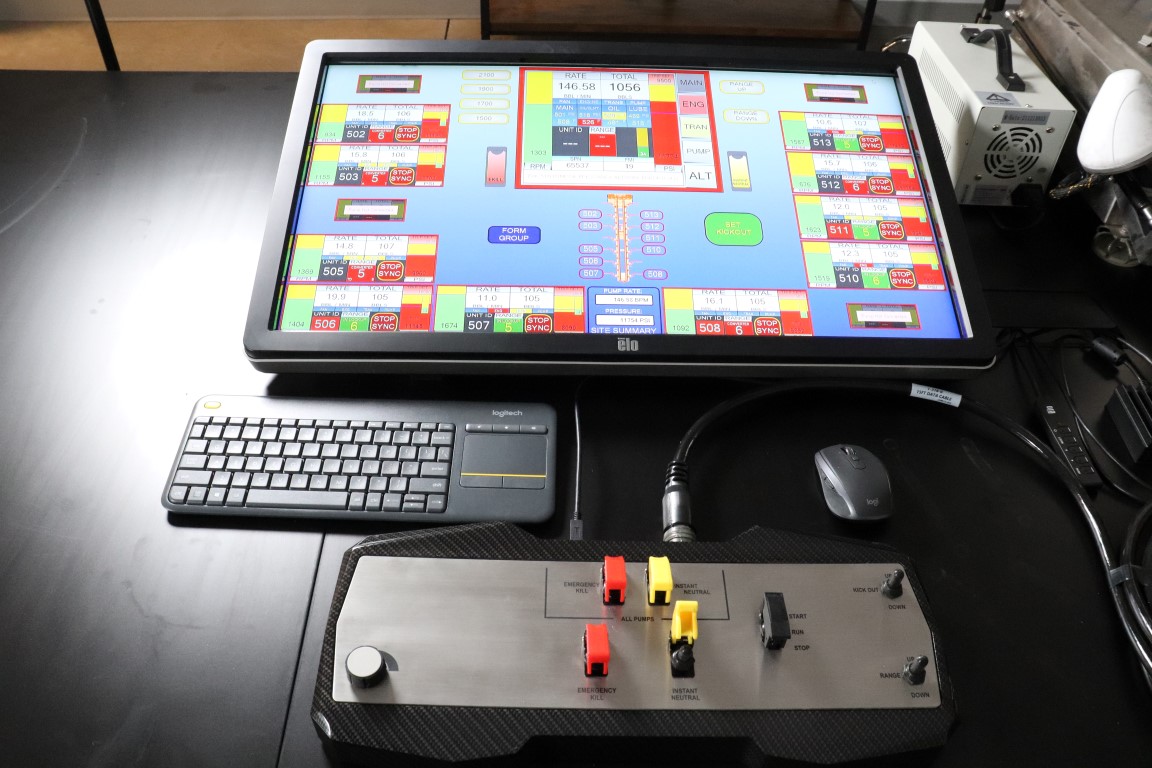

Multi Pump Control

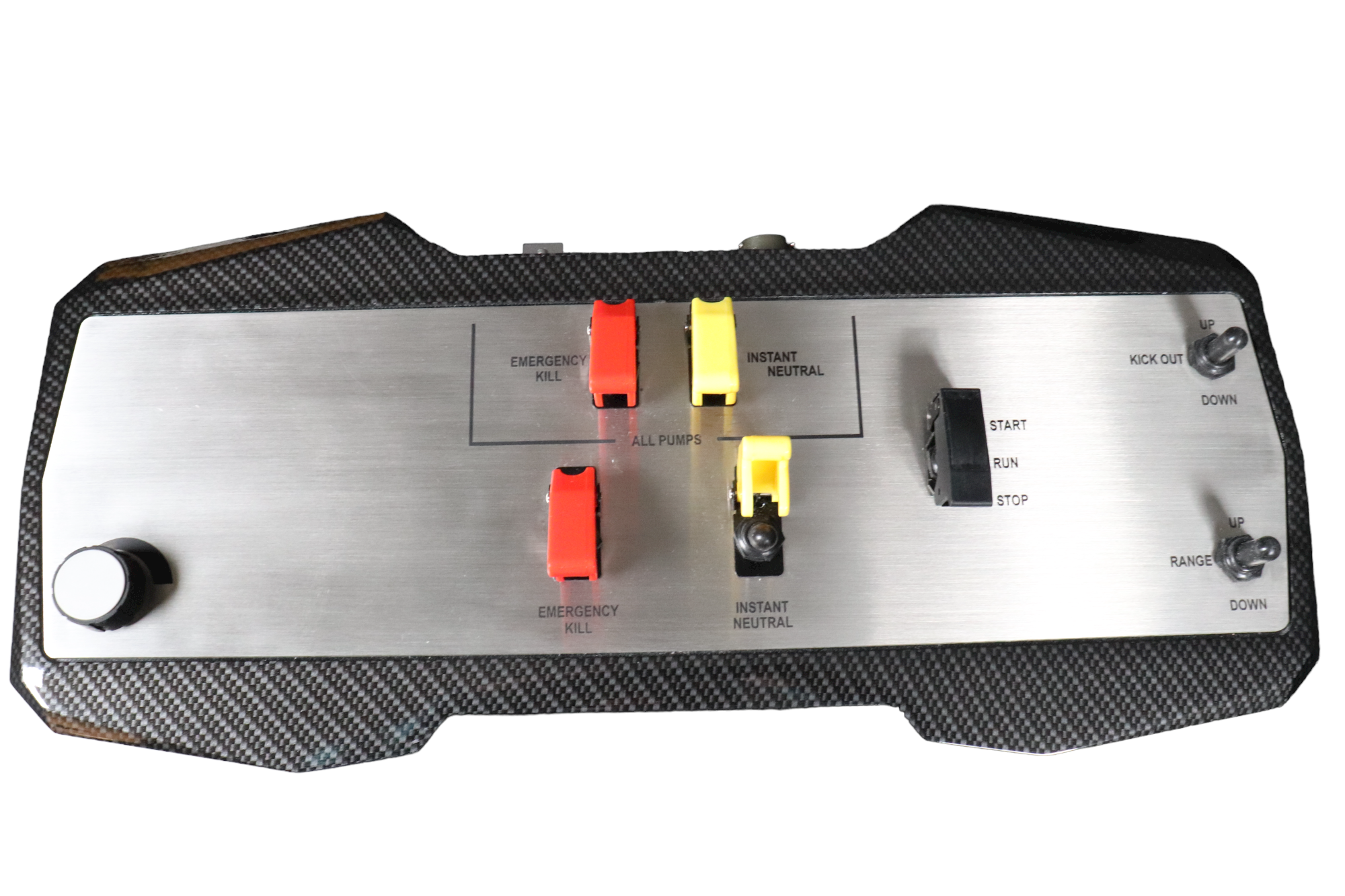

Hard switches
Touchscreen
Grouping Pumps
Individual Pump Ctrl
All E-Kill
Group E-Kill
Individual E-Kill
All Inst Neutral
Group Inst Neutral
Individual Inst Neutral
All kick out setting
Group out setting
Individual out setting
Group Throttle
Individual Throttle
Group Shifting
Individual Shifting
Serial Out
Data Logging
