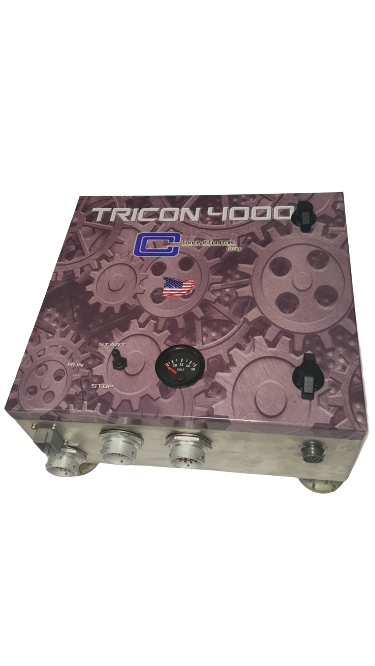

- Local interconnect enclosure w/ splash cover

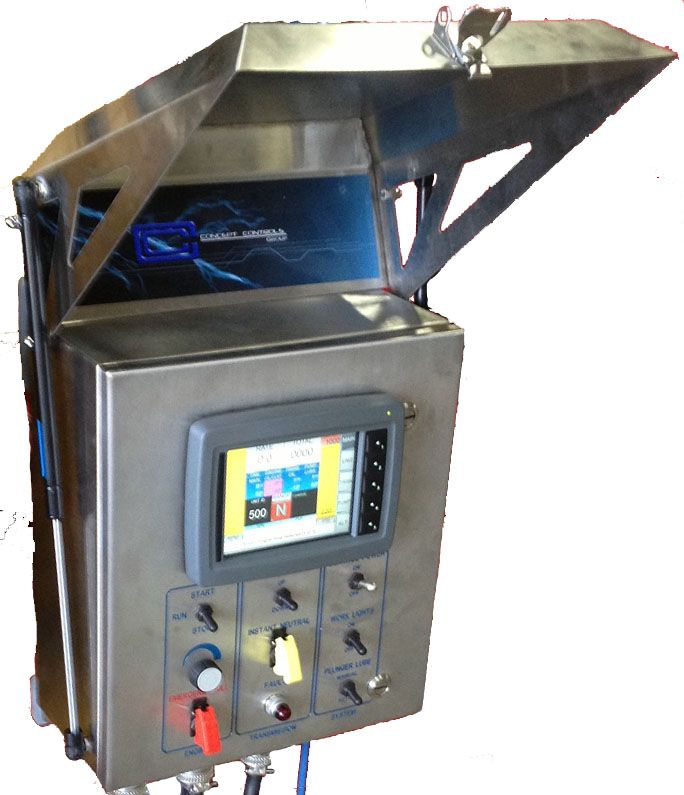

- Operator’s digital display & control panel•

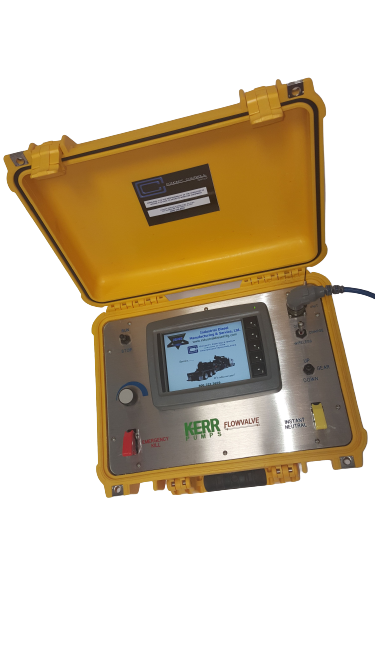

- Remote operator’s display & control suitcase(optional)•
- Vibration isolation
This digital control package is designed to interface and control a Cummins, Detroit or Caterpillar diesel engine equipped with SAEJ1939 CAN-Bus or mechanical engine with additional interface. This control is suitable to interface with a CAN-Bus or analog controlled Allison, Twin Disc, or CAT power shift trans-mission system.
TheTRICON-4000Digital Pump Control System includes a locally mounted stainless steel interconnect enclosure isolated from the chassis by able iso mounts and have a hinged locking door and wash / shade hood. The oper-ator monitoring display is panel mounted for exterior viewing via a 6”x 9” color display via CAN-Bus interface, SAE J1939 for viewing all available engine, transmission, pump and other major component operating data in real-time. Positive feed back switches help make our controls reliable and user friendly.
Data includes (typical)
Radiator fan drive or Hydraulic system
main pressure
charge pressure
oil temperature
Engine RPM
Engine hours
Engine coolant temper-ature
Engine oil pressure
Transmission rangew/ lockup status
Transmission oiltemperature
Transmission oilmain pressure
Pump lube oil tem-perature
Pump lube oil pres-sure
Pump rate (BBL/Min)
Pump rate totalizer(BBLs)
Pump dischargepressure
Over pressure tripsetting System Error message
